[C++] Chap 10 - Pointers and Dynamic Arrays

Pointers

• Memory address of a variable

int *p1, *p2, v1, v2;
p1 = &v1; // sets pointer variable p1 "point to" int variable v1

• p1 → v1
• “p1 equals the address of v1”
• “p1 points to v1”
• ‘Address of’ Operator & : Determines address of a variable
• Dereference operator * : pointer variable dereferenced.
• “Get data that p1 points to”

int *p1, *p2;
p2 = p1; // makes p2 point to where p1 points
*p2 = *p1; //"value pointed to" by p1, to "value pointed to" by p2

The new operator

• NO real need to have a standard identifier.
• Can dynamically allocate variables with new
• p1 = new int; : Creates new nameless variable, assigns p1 to point to it.
• Can access with *p1
• Creates a new dynamic variable and returns pointer to the new variable
• If type is a class type : constructor is called, can invoke different constructor with initializer arguments
• Also can initialize non-class types

MyClass *mcPtr;
mcPtr = new MyClass(32.0, 17);
int *n;
n = new int(17); // same as n= new int; *n=17;

• Pointers are full-fledged type : can be any function parameter, returned from function
• int* findOtherPointer(int* p);
  • Has “pointer to an int” parameter
  • Returns “pointer to an int” variable

Basic Memory Management

• Heap
  • Also called ‘freestore’ (from top)
  • Reserved for dynamically-allocated variables
  • All new dynamic variables consume memory in heap
• ‘new’ operation will fail if heap is full : NULL is assigned to the pointer
• To check new operation success

int *p;
p = new int;
if (p==NULL)
{
	cout<< "Error";
	exit(1);
} //Old compilers

• For newer compilers, if new operation fails, perogram terminates automatically w/ error message

NULL, nullptr, delete

• NULL : Identical to 0
• nullptr : resolves the ambiguity problem of NULL (can only be assigned to a pointer)
• De-allocate dynamic memory
  • When the dynamic memory is no loner needed, returns memory to freestore(heap)

int *p;
p=new int(5);
...// Do something...
delete p;

• delete p; : Destroys dynamic memory but still p points there.
• to avoid “dangling pointer problem”, assign pointer NULL or nullptr after delete

Comparison btw Dynamic and Automatic(Local) Variables

• Dynamic variables
  • Created with new operator
  • Created and destroyed while program runs
• Local variables
  • Declared within a function definition
  • Not dynamic : Created when th function is called, Destroyed when the function call completes
  • Often called automatic variables
• Global variabels
  • Variables declared outside any function/class definition
  • Sometimes called as statically allocated variables

int* p;
p = new int(5);
//p : Created with new, dynamic, stored in heap
//*p : Created locally, stored in stack

Defining Pointer Types

• Can “name” pointer types
• typedef int* IntPtr; : make int* and IntPtr equivalent
  1. It avoids of mistake of omitting *

int *p1, p2; // p2 is not pointer
IntPtr p1, p2 //p1, p2 are both pointers

1. No Complication for call-by-reference for a pointer type

void sampleFunction(IntPtr& pointerVariable);
void sampleFunction(int*& pointerVariable); //SAME!

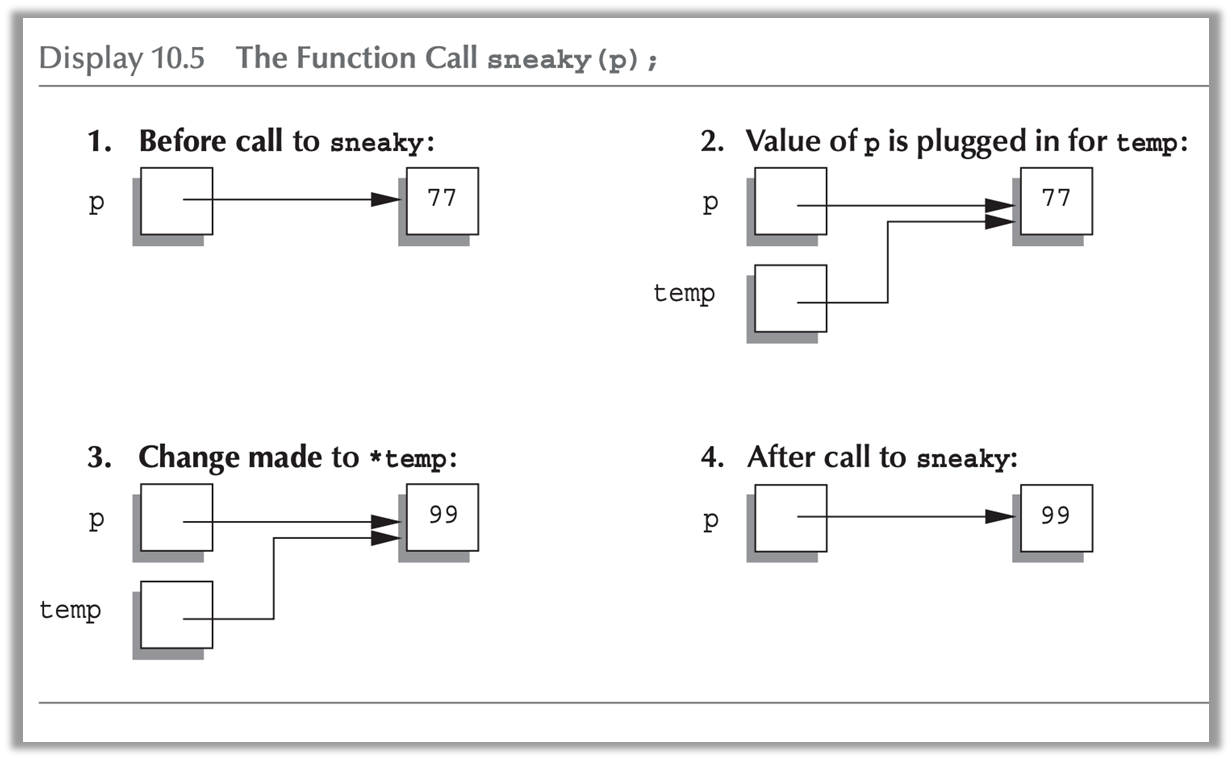

Pitfall : Call-by-value pointer parameter

void sneaky(int* temp){
	*temp=99;
}
int main() {
	int *p = new int(77);
	sneaky(p);
	cout<<*p<<endl; //99
}

• Even though the function parameter is call-by-value, it actually seems to be call-by-reference in perspective of the value.
• Temporally makes pointer that points the value that original parameter points to, change the value, destroys the temp parameter
• Comparing Call-by reference and pointers

void swap(int &v1, int& v2){
	int temp;
	temp = v1;
	v1=v2;
	v2=temp;
}
void swap2(int *v1, int *v2) {
	int temp;
	temp = *v1;
	*v1 = *v2;
	*v2 = temp;
}
int main() {
	int a(1), b(2);
	swap(a, b);
	swap2(&a, &b);
}

Dynamic Arrays

• Array variables are really pointer variables
• For dynamic array, size is not specified at programming time.

int v[10];
int *p;
p=v; //legal
v=p; //illegal (array are constant pointer)
cout<<p[4]; //same as cout<<v[4];

• Actually array variable int v[10] is const int* type.
• The variable v must point there always

Dynamic arrays

• assigned and deleted with new and delete

double *d;
d = new double[10];
delete[] d; //delete dynamic array
d=nullptr;

• Size can be an integer-valued expression. (no need to be a constant as in the standard array
• Array type is NOT allowed as a return-type of a function

int[] someFunction(); //illegal
int* someFunction(); //legal

• Pointer Arithmetic : can perform arithmetic on pointers

double* d;
d = new double[10];
cout<<*(d+1); //d[1]

• d : address of d[0], d+1 : address of d[1] and so on…
• Only use addition/subtraction on pointers, can use ++, -- as well

Multidimensional Dynamic Arrays

typedef int* IntArrayPtr;
IntArrayPtr *m = new IntArrayPtr[3];
// Creates an array of three pointers
for (int i = 0; i<3;i++){
	m[i] = new int[4];
}
// results in 3 x 4 dynamic array
for (int i = 0;i<3;i++){
	delete[] m[i];
}
delete[] m;

Classes, Pointers and Dynamic Arrays

-> operator

• Shorthand notation that combines dereference operator, *
• Specifies member of class “pointed to” by given pointer

struct Record
{
	int number;
	char grade;
}
Record *p;
p = new Record;
p->number = 2001; //*p.number = 2001;
p->grade = 'A'; //*p.grade='A';
//equivalent

this operator

• function definitions might need to refer to calling object

class Sample {
public:
	void showStuff() const;
private:
	int stuff;
};
void Sample::showStuff() const {
	cout<<stuff;
}
void Sample::showStuff() const {
	cout<< this->stuff; //equivalent with the function above
}

Assignment Operator

• Assignment operator returns reference
  • Assignment ‘chains’ are possible (a=b=c;)
  • Can call (a=b).f()
• Operator must return same type as its left-hand side.
  • This makes operators to allow chains to work
• Cannot be overloaded via friend function (to not modify a constant)
• s1=s2=s3; : Requires to be right associative

class StringClass {
public:
	StringClass& operator=(const StringClass& rtSide);
private:
	char *a; //Dynamic array for char
	int capacity; // size of dynamic array
	int length;//number of characters in a
};
StringClass& operator=(const StringClass& rtSide) {
	if (this == &rtSide){
		return *this;
	} // cares when s=s
	else {
		capacity = rtSide.capacity;
		length = rtSide.length;
		delete [] a;
		a = new char[capacity];
		for (int i=0;i<length;i++){
			a[i]=rtSide.a[i];
		}
		return *this;
	}
}

The Big Three

• the = assignment operator, the copy constructor, the destructor.. they go together
• Why does the = operator overloading necessary for PFArrayD (Partially filled array double) ?
• If we don’t implement = operator overloading, it uses default = operator (elementwise =)

PFArrayD list1(10), list2(20);
list1=list2; //will make list1.a=list2.a;

• If list1.a changed then list2.a is also changed.
• We usually wand a completely independent copy.

Destructor

• Dynamically-allocated variables don’t go away until deleted
• When the object is deleted, the dynamically allocatd variables are not automatically freed from heap
• Default version only removes ordinary variables, not dynamic variables

Myclass::~Myclass()
{
	delete[] a;
}

Shallow and Deep Copies

• Shallow copy
  • Assignment copies only member variable contents
  • Default assignment and default copy constructors use shallow copy
• Deep copy
  • Pointers, dynamic memory involved
  • Must dereference pointer variables to “get to” data for copying
  • Write your own assignment operator and copy constructor in this case
• Problems of shallow copy : without care, it copies the pointer variable not real variable.

Copy constructors

• A constructor that has one paramter with same type of the class (usually call-by-reference, const)
• Three main usages
  1. When a class object is being declared & initialized by another object of the same type

PFArrayD b(20);
for (int i =0;i<20;i++)
	b.addElement(i);
PFArrayD temp(b);
for (int i =0;i<20;i++)
	temp.addElement(i+1);
	// changing values of temp does not affect b anymore

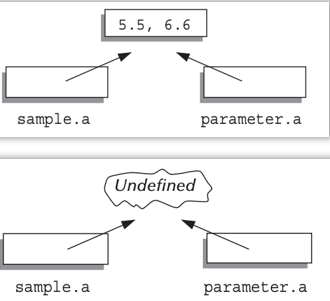

1. When an argument of the class type is “plugged in” for a call-by-value paramter

void showPFArrayD(PFArrayD parameter) {
cout<< parameter[0];
}
//this destroys the dynamically allocated memory
//makes original object's pointer dangling
PFArray sample(2);
sample.addElement(5.5);
sample.addElement(6.6);
showPFArrayD(sample); //this destroys the pointer
cout<<sample[0]; //error
//It happens when the destructer is properly coded

Also causes the “double free” problem when dislocating sample.a

1. When a function returns a value of the class type

	StringClass someFunction();

• When returning the value out, copy constructor called automatically
• Similar problem as case 2 happens
